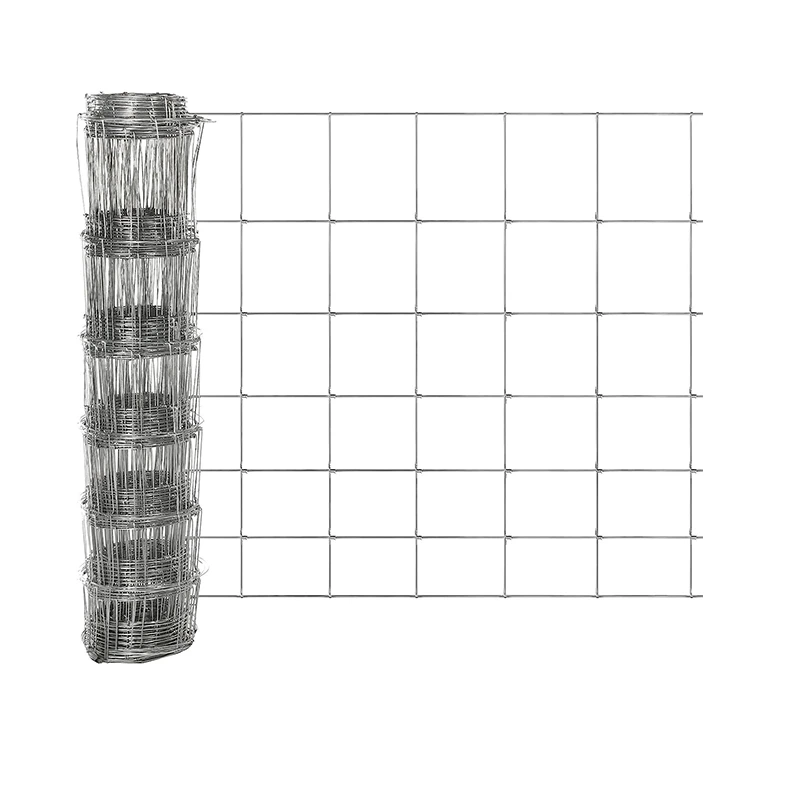

Field Fence

Field Fence

Agricultural Field Fence for Livestock and Pasture Boundaries

Field Fence is a woven wire fencing system designed for livestock enclosures, pasture boundaries and agricultural land. Graduated or uniform mesh arrangements can be selected according to different animals and fencing requirements.

Fence height, wire diameter, vertical wire spacing, roll length and knot structure can be customized according to the application.

  • Fence Height: 0.8–2.0 m
  • Roll Length: 30–100 m
  • Vertical Wire Spacing: 100–300 mm
  • Wire Diameter: 2.0–3.0 mm
  • Edge Wire Diameter: 2.5–3.5 mm
  • Mesh Structure: Graduated mesh, uniform mesh
  • Knot Type: Hinge Joint, Fixed Knot, Square Knot
  • Material: Galvanized Steel Wire
Request a Quote

Field Fence Structure and Applications

Field Fence is manufactured by connecting horizontal and vertical wires with formed knot structures, creating a flexible fence that can follow uneven ground while maintaining a continuous boundary.

Mesh arrangement, wire spacing and knot type can be selected according to livestock size, terrain and the required level of containment.

Graduated and Uniform Mesh

Graduated mesh uses smaller openings near the bottom and progressively larger openings toward the top. This arrangement helps provide denser protection at lower levels while reducing unnecessary wire usage in the upper section.

Uniform mesh maintains consistent openings throughout the fence height and is suitable where a regular mesh pattern is preferred.

Hinge Joint, Fixed Knot and Square Knot

Different knot structures are available to meet different fencing requirements. Hinge Joint has a relatively simple structure and allows efficient production. Fixed Knot provides a firmer connection between the horizontal and vertical wires, improving overall mesh stability. Square Knot has a simple and neat appearance and is commonly used in certain markets and regions.

The appropriate knot type can be selected according to livestock type, terrain, fence height and structural requirements.

Galvanized Wire Protection

Galvanized steel wire is commonly used for outdoor agricultural fencing. The zinc coating provides corrosion protection against rain, moisture and general outdoor conditions.

Agricultural Applications

Field Fence is widely used for pasture boundaries, livestock enclosures, farms, ranches and agricultural land. It can also be combined with gates, posts and other fencing accessories to form a complete enclosure system.

Custom Field Fence Production

QB METAL can manufacture Field Fence according to project requirements. Fence height, roll length, wire diameter, vertical wire spacing, mesh arrangement and knot type can all be adjusted.

For quotation, customers can provide the required fence height, roll length, quantity, livestock type and intended application.
