Stainless Steel Filter Elements

Stainless Steel Filter Elements Structure and Applications

Stainless Steel Filter Elements can be designed according to filtration accuracy, flow rate, pressure conditions, installation space and connection requirements. The filter media and supporting structure work together to provide the required filtration performance while maintaining suitable mechanical strength.

Dimensions, shape, filter media, support structure and connection type can be customized according to equipment drawings or samples.

Stainless Steel Materials and Surface Treatment

Stainless steel 304 is commonly used for general industrial filtration, while 316 and 316L can be selected for applications requiring higher corrosion resistance.

Cleaning, polishing and passivation can be carried out according to product structure and application requirements.

Filter Media and Support Structure

Woven wire mesh can be used for different filtration and screening requirements, while sintered mesh provides a more stable multi-layer filtration structure. Perforated metal can be used as a support layer where additional rigidity is required.

Different media can also be combined to form multi-layer filter elements according to operating conditions.

Shapes and Connection Options

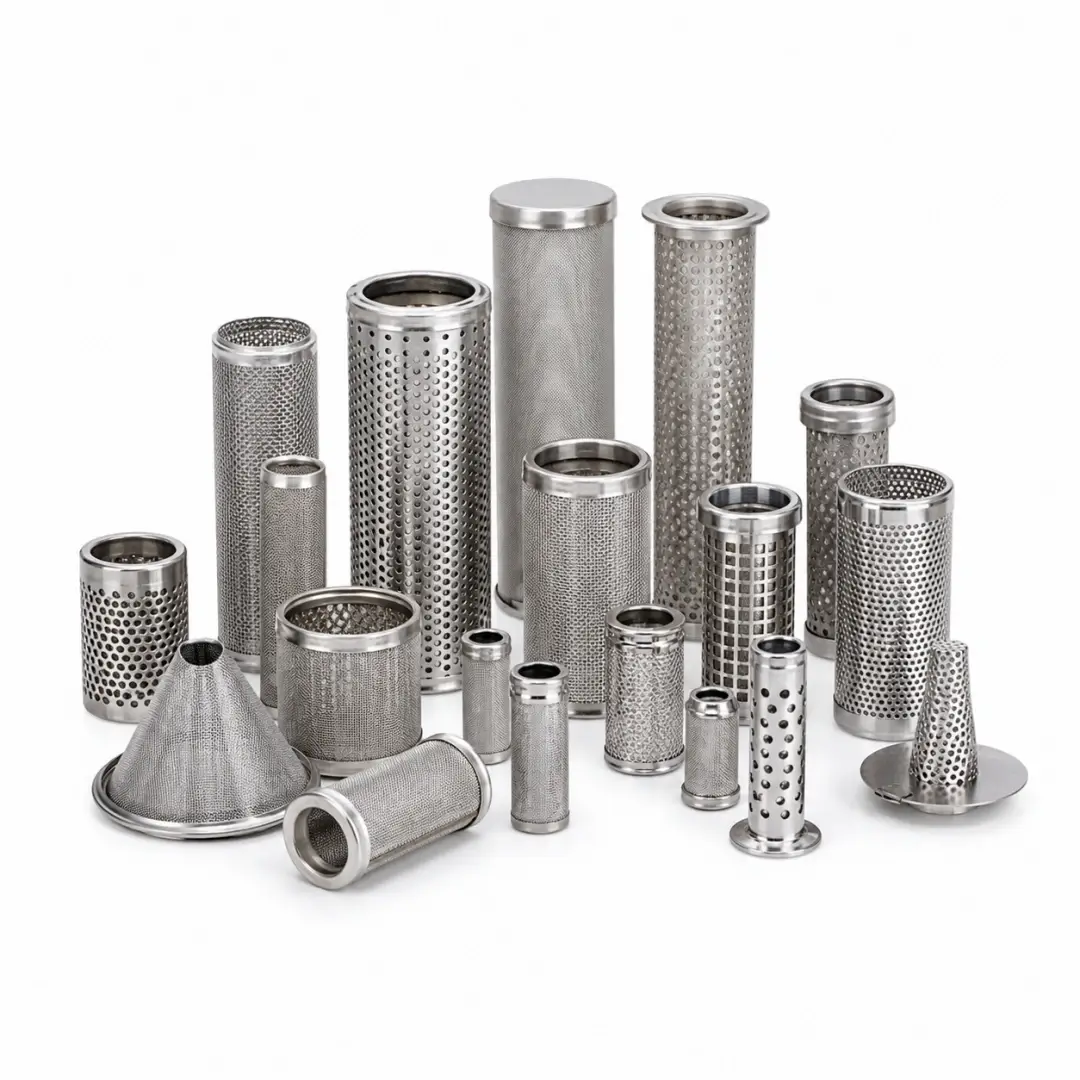

Filter elements can be manufactured in cylindrical, conical, disc-shaped and other custom forms. Threaded ends, flanges, welded fittings, end caps and other connection structures can be added according to equipment requirements.

Filtration Rating and Working Conditions

Filtration rating should be selected together with flow rate, working pressure, medium characteristics and allowable pressure drop. A finer filtration rating does not always mean a better solution, as it may also affect flow capacity and cleaning frequency.

QB METAL can manufacture filter elements according to the required filtration performance and operating conditions.

Industrial Filtration Applications

Custom stainless steel filter elements are used in chemical processing, petrochemical equipment, food processing, pharmaceutical equipment, water treatment, machinery and other industrial filtration systems.

The appropriate structure should be selected according to the filtered medium, operating temperature, pressure and required filtration performance.

Custom Stainless Steel Filter Elements

QB METAL can manufacture filter elements according to customer drawings, samples or equipment dimensions. Filter media, filtration rating, dimensions, support structure, connection method and surface treatment can all be customized.

For quotation, customers can provide drawings or details such as material, filtration rating, dimensions, quantity and intended application.
