Portable Welded Mesh Fence for Temporary Site Protection

Australia Temporary Fence is a portable welded mesh fencing system used to create temporary boundaries around construction sites, work areas and other restricted locations. Each panel is supported by removable bases and connected with clamps, allowing the fence line to be extended, repositioned or reused as site requirements change.

Panel dimensions, mesh opening, wire diameter, frame tube and accessories can be customized according to project requirements.

Panel Size: 2.1 × 2.4 m, 1.8 × 2.4 m or customized

Mesh Opening: 50 × 100 mm, 60 × 150 mm, etc.

Wire Diameter: 3.0–5.0 mm

Frame Tube: 32 mm, 38 mm or customized

Horizontal Tube: 25 mm, 32 mm or customized

Base Type: concrete-filled base

Accessories: Clamps, braces, gates

Material: Low carbon steel

Surface Treatment: Hot-dip galvanized

Australia Temporary Fence Structure and Applications

The system consists of framed welded mesh panels, removable bases and connecting clamps. Individual panels are connected in sequence to form straight fence lines, corners or enclosed temporary areas.

The modular structure allows the layout to be changed when access routes, working areas or site boundaries are adjusted.

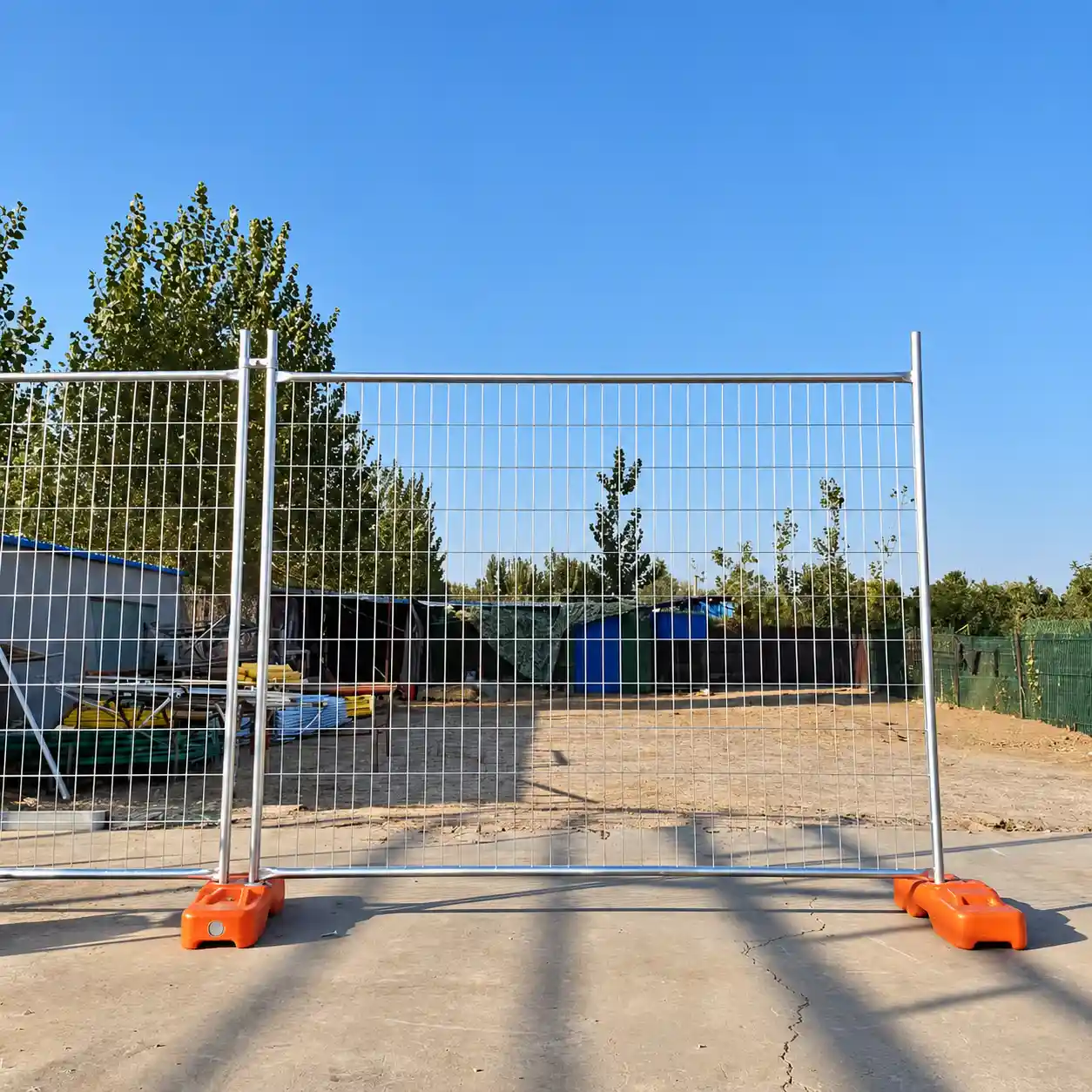

Welded Mesh Panel and Frame

The welded mesh is fixed inside a tubular steel frame to form a rigid panel. Horizontal tubes can be added to reinforce the panel structure, with tube diameter, wire diameter and mesh opening selected according to the required specification.

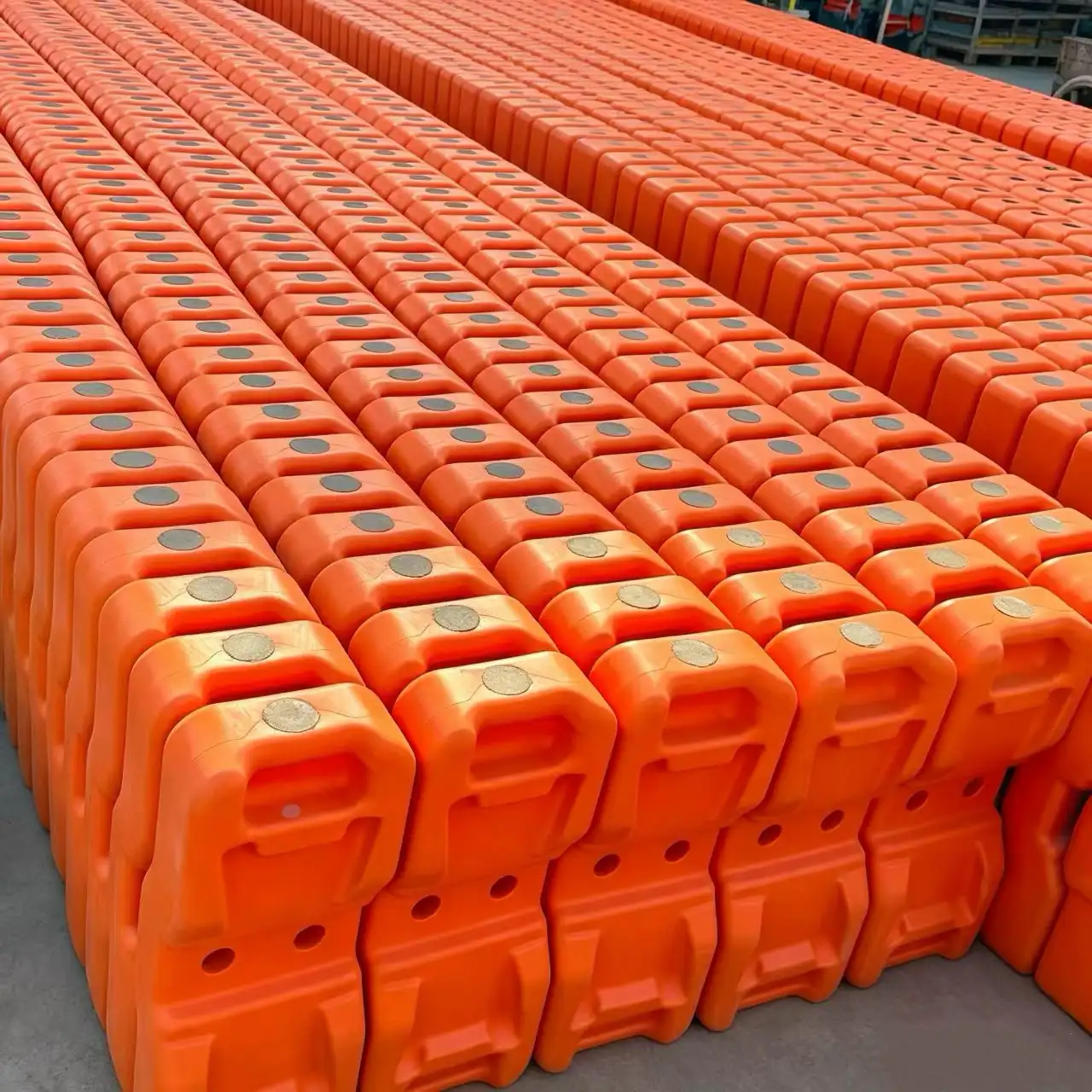

Removable Base and Stability

Concrete-filled bases support the panels without requiring permanent foundations. The removable design makes the system suitable for temporary projects where the fence may need to be moved or reused.

Additional braces can be added where greater stability is required.

Panel Connections and Temporary Gates

Clamps are used to connect adjacent fence panels and maintain a continuous fence line. Temporary gates can also be incorporated where pedestrian or vehicle access is required.

Hot-Dip Galvanized Finish

Australia Temporary Fence is commonly supplied with a hot-dip galvanized finish for outdoor use. The galvanized coating provides corrosion protection during repeated transportation, handling and temporary site use.

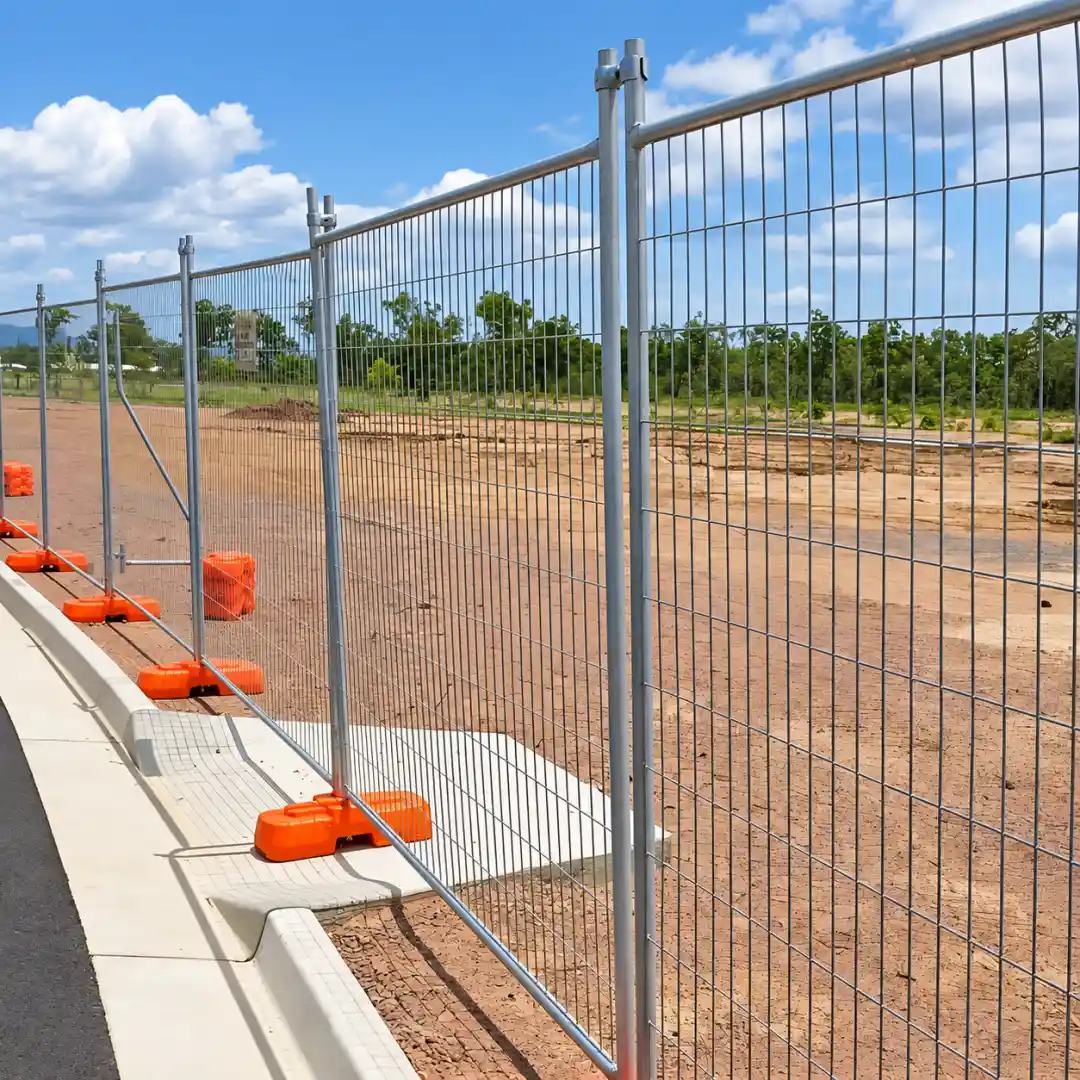

Temporary Site Applications

Australia Temporary Fence is commonly used for construction sites, road works, temporary storage areas, events and restricted work zones.

Panels, bases, clamps, braces and gates can be supplied together as a complete temporary fencing system.

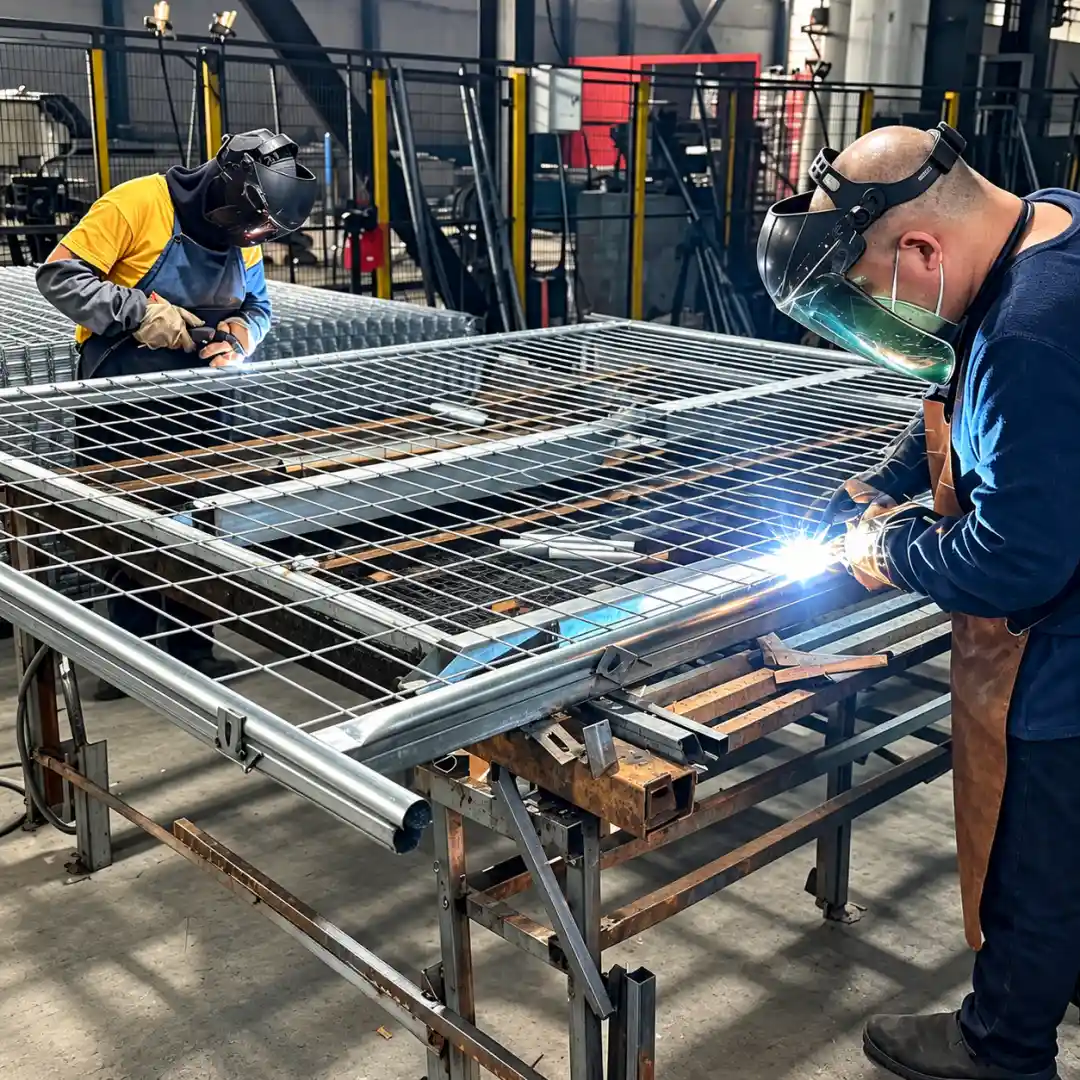

Custom Production

QB METAL can manufacture Australia Temporary Fence according to project specifications. Panel dimensions, mesh opening, wire diameter, frame tube, horizontal tube and accessory configuration can be adjusted according to different requirements.

For quotation, customers can provide required panel size, quantity, accessories and intended application.
