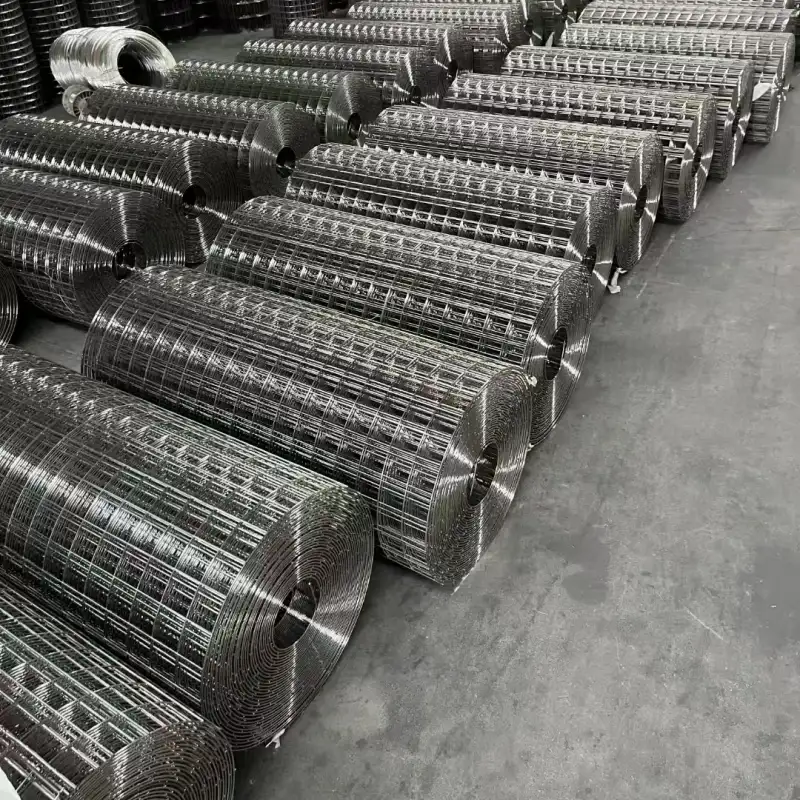

Custom wire diameter, mesh opening, roll width and roll length. Available in galvanized, PVC-coated and stainless steel materials. Small mesh openings can also be supplied as hardware cloth.

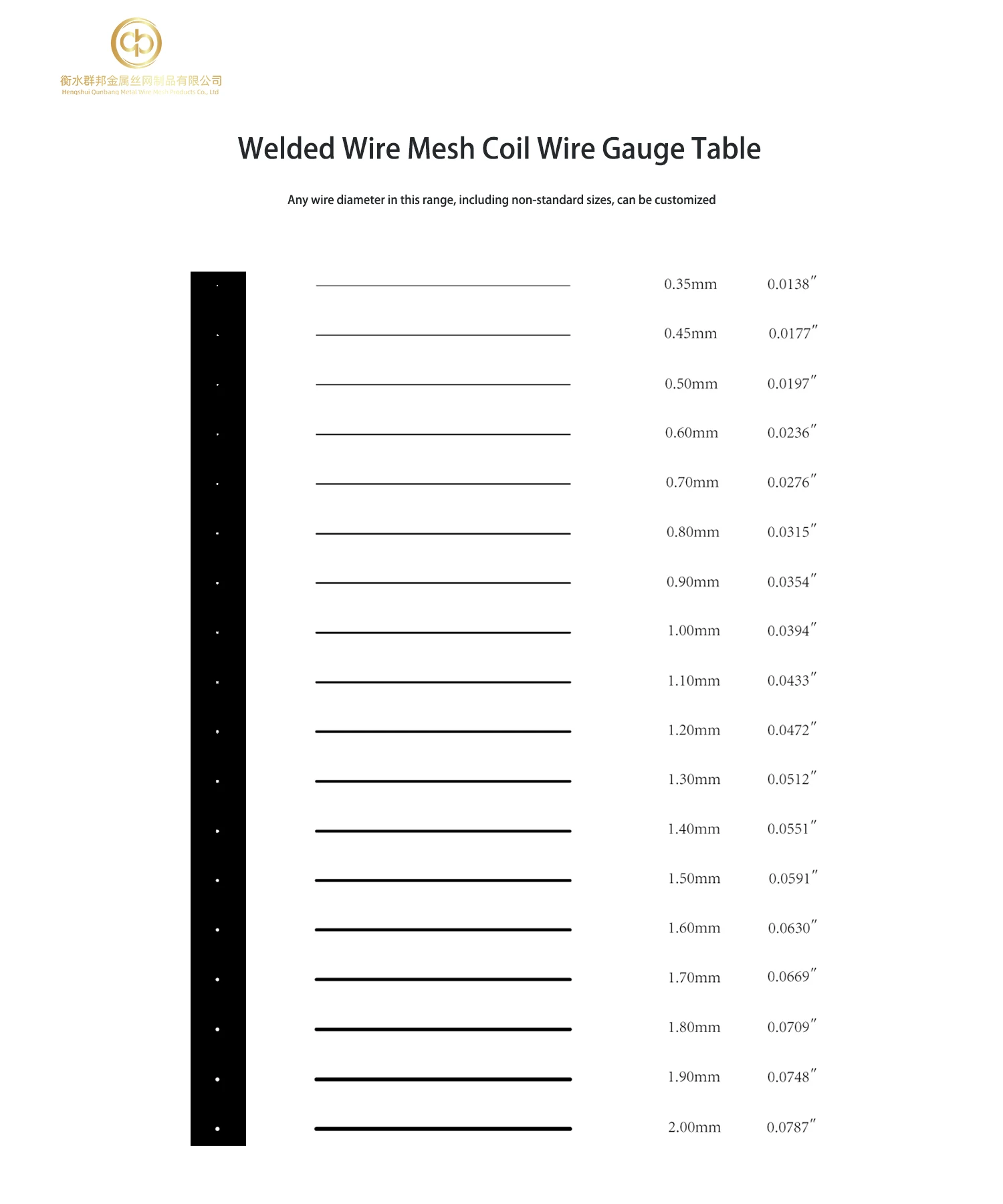

Wire diameter and mesh opening should be selected together. Larger wire diameters are usually matched with larger mesh openings, while smaller wire diameters are more suitable for smaller mesh openings. For most welded wire mesh rolls, the wire diameter is typically below 2.0 mm. After PVC coating, the finished outside diameter can reach approximately 2.5 mm.

Specifications


Hot-selling Specifications
Mesh Shape	Mesh Size (inch)	Wire Diameter	Surface Treatment	Color	Width (m)	Length (m)
Square	1/4″	0.5 mm (0.020″)	Hot-dipped Galvanized	Silver	0.5/1/1.2/1.5	10/15/25
Square	1/4″	0.7 mm (0.028″)	Hot-dipped Galvanized	Silver	0.5/1/1.2/1.5	10/15/25
Square	1/2″	0.7 mm (0.028″)	Hot-dipped Galvanized	Silver	0.5/1/1.2/1.5	10/15/25
Square	3/4″	0.75 mm (0.030″)	Hot-dipped Galvanized	Silver	0.5/1/1.2/1.5	10/15/25
Square	1″	0.9 mm (0.035″)	Hot-dipped Galvanized	Silver	0.5/1/1.2/1.5	10/15/25
Square	1″	1.2 mm (0.047″)	Hot-dipped Galvanized	Silver	0.5/1/1.2/1.5	10/15/25

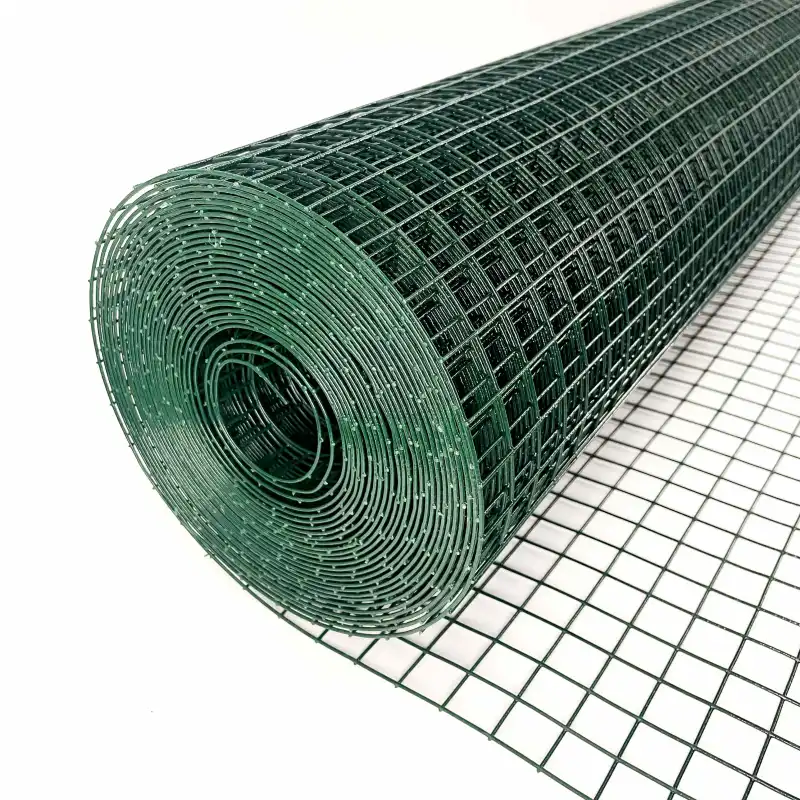

Square	1/2″	1.0 mm (0.039″)	PVC Coated	Dark Green	0.5/1/1.2/1.5	10/15/25
Square	1/2″	1.1 mm (0.043″)	PVC Coated	Dark Green	0.5/1/1.2/1.5	10/15/25
Square	3/4″	1.05 mm (0.041″)	PVC Coated	Dark Green	0.5/1/1.2/1.5	10/15/25
Square	3/4″	1.2 mm (0.047″)	PVC Coated	Dark Green	0.5/1/1.2/1.5	10/15/25
Square	1″	1.2 mm (0.047″)	PVC Coated	Dark Green	0.5/1/1.2/1.5	10/15/25

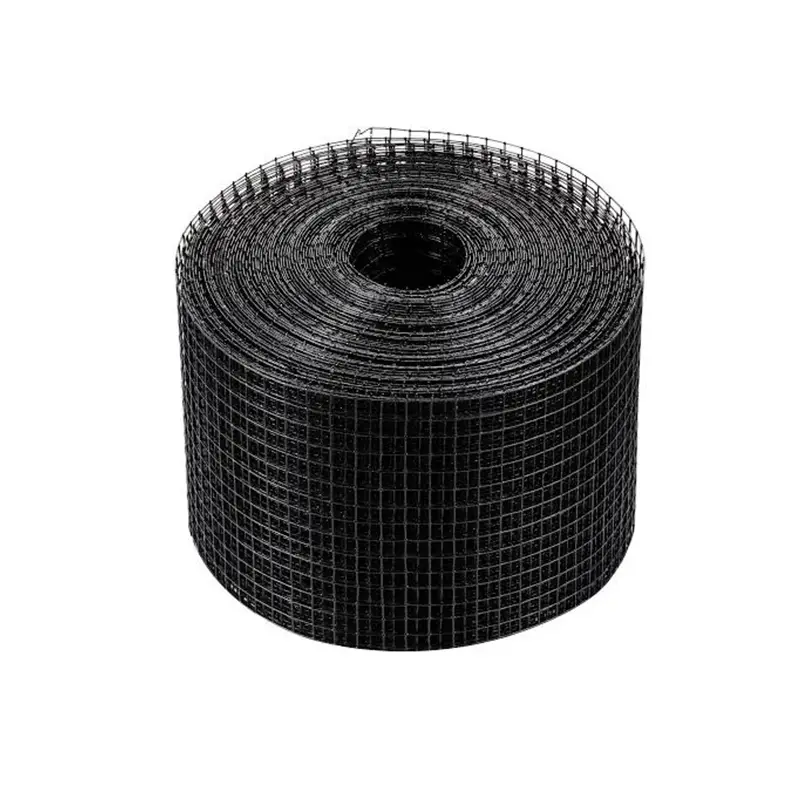

Square	1/4″	0.9 mm (0.035″)	PVC Coated	Black	0.5/1/1.2/1.5	10/15/25
Square	1/4″	1.0 mm (0.039″)	PVC Coated	Black	0.5/1/1.2/1.5	10/15/25
Square	1/2″	1.0 mm (0.039″)	PVC Coated	Black	0.5/1/1.2/1.5	10/15/25
Square	3/4″	1.0 mm (0.039″)	PVC Coated	Black	0.5/1/1.2/1.5	10/15/25
Square	1″	0.9 mm (0.035″)	PVC Coated	Black	0.5/1/1.2/1.5	10/15/25
Square	1″	1.2 mm (0.047″)	PVC Coated	Black	0.5/1/1.2/1.5	10/15/25
Square	1″	1.2 mm (0.047″)	Electro Galvanized	Silver	0.5/1/1.2/1.5	10/15/25
Square	1/2″	0.8 mm (0.031″)	Electro Galvanized	Silver	0.5/1/1.2/1.5	10/15/25
Square	1/2″	0.9 mm (0.035″)	Electro Galvanized	Silver	0.5/1/1.2/1.5	10/15/25
Square	1″	0.9 mm (0.035″)	Electro Galvanized	Silver	0.5/1/1.2/1.5	10/15/25
Rectangular	2″ × 3″	1.2 mm (0.047″)	Hot-dipped Galvanized	Silver	1/1.5/2	20/25
Rectangular	2″ × 3″	1.6 mm (0.063″)	Hot-dipped Galvanized	Silver	1/1.5/2	20/25
Rectangular	2″ × 3″	2.0 mm (0.079″)	PVC Coated	Dark Green	1/1.5/2	20/25
Rectangular	2″ × 3″	2.3 mm (0.091″)	PVC Coated	Dark Green	1/1.5/2	20/25

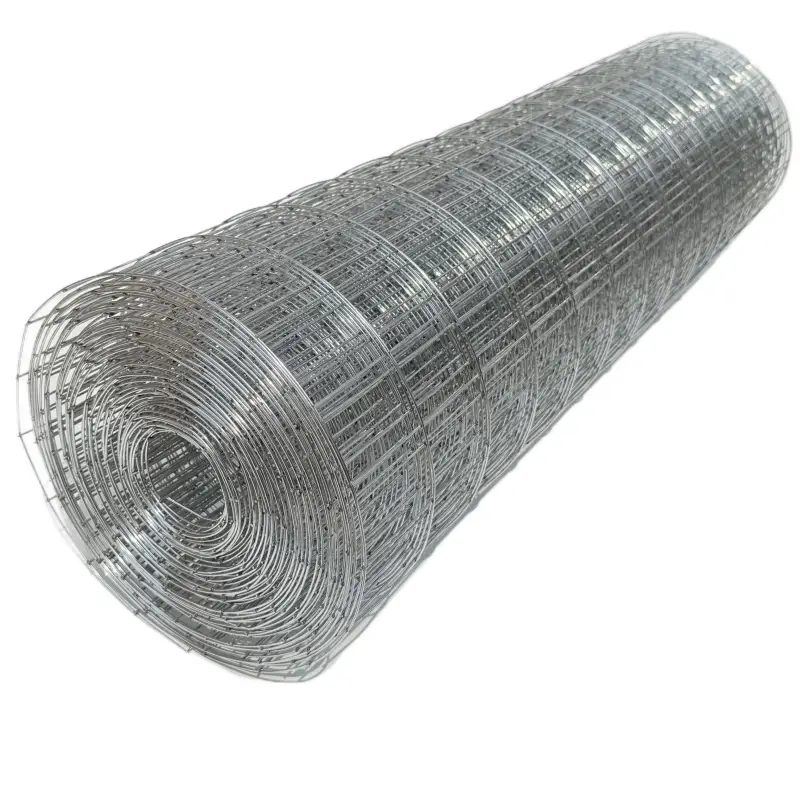

Welded Wire Mesh Roll
